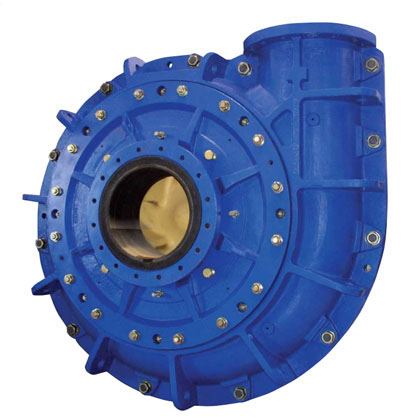

450MSR Ball Mill Underflow Slurry Pump

Brand: Nenglian
Model Number: 450MSR
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 30 Sets per Month
Packaging Details: Standard export packaging
Payment Terms: T/T,Western Union
Supply Ability: 100 Sets per Month
Packaging Details: Standard export packaging

  • DESCRIPITON

Pump Model: 450MSR

MSR pumps beong to Nenglian MS series pumps which are specially designed for the severe duty applications such as ball mill cyclone feed in minerals processing plants.

MS pumps are available in MSR and MSU two types of different constructions:

MSR – 1. Split Outter Casing — Ductile Iron 2. Impeller — Hard Iron (A05, A49) 3. Inner Liners: Elastomer (Natural Rubber, Neoprene, etc.)

MSU – Unlined, material of Casing, Impeller, Throatbush, Frame Plate Liner Insert — High Chrome Alloy (Hard Metal White Iron)

Discharge Available in Sizes: from 150mm to 750mm

Shaft Seal: Gland Packing Seal.



Features:

Large diameter, low speed, high efficiency impellers;

Latest wear resistant materials;

Interchangeable elastomer or metal liners, or unlined hard metal;

Available reverse rotations offer plant design flexibility (CCW and CW rotations).
