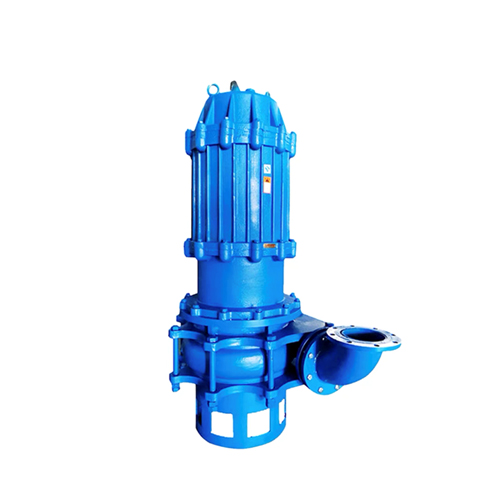

NZQ submersible mud pump

 ● Flow rate: 8-500m3/hr
 ● Head H(m): 6-80
 ● Speed: 1450rpm
 ● Materials: Cr26A

  • DESCRIPITON

Introduction:

 1. Submersible slurry pump. The sand suction pump is a hydraulic machine in which the motor and the water pump are coaxially submerged into the medium. The pump flow parts are made of high-strength wear-resistant alloy, wear-resistant cast iron, cast steel, etc.

2. The material of the flow parts is determined according to the liquid discharged from the customer's work. The pump has a large flow channel and is suitable for conveying media such as sediment, ore slurry, coal slurry, sand and gravel containing large solid particles, and can also be used in rivers. , dredging, excrement, slurry feed, etc. suction, watering.

3. The pump can also be used for municipal, chemical dyes, medicine, shipbuilding, food, etc., as well as pumping high-concentration thick liquid, dirty dust liquid, paste, etc. It is an important equipment that cannot be replaced by submersible sewage pumps.

 4. The power supply is 50HZ/60HZ/380V/415V/660V/1140V three-phase AC power supply, and the capacity of the distribution transformer is 2-3 times the rated capacity of the motor.

 5. The medium temperature should not exceed 60, XSQ (R) type should not exceed 140, and does not contain flammable and explosive gases.

6. The maximum weight concentration of solid particles in the medium; 45% for ash and 60% for slag.

7. In the pump of the internal self-circulating cooling system, the exposed liquid level of the motor part should not exceed 1/2.

8. The diving depth of the unit; not more than 40 meters, the minimum diving depth is subject to submerged motors.


Specifications:

Pump
  Model

Capacity Q

m3/h

Head
         H(m)

Allowable
         Max. Power (kw)

Speed
         n(r/min)

50NZQ25-15-4

25

15

4

1400

80NZQ40-12-4

40

12

4

1400

80NZQ45-15-5.5

45

15

5.5

1400

80NZQ70-12-5.5

70

12

5.5

1400

50NZQ25-30-7.5

25

30

7.5

1400

80NZQ30-30-7.5

30

30

7.5

1400

80NZQ80-15-7.5

80

15

7.5

1400

80NZQ50-20-7.5

50

20

7.5

1400

100NZQ100-12-7.5

100

12

7.5

1400

80NZQ80-20-11

80

20

11

1400

80NZQ50-30-11

50

30

11

1400

100NZQ90-17-11

90

17

11

1400

80NZQ80-35-15

80

35

15

1400

100NZQ100-20-15

100

20

15

1400

100NZQ120-16-15

120

16

15

1400

100NZQ150-20-18.5

150

20

18.5

1400

150NZQ200-12-18.5

200

12

18.5

1400

100NZQ150-25-22

150

25

22

1400

100NZQ100-40-22

100

40

22

1400

100NZQ120-35-22

120

35

22

1400

80NZQ80-45-22

80

45

22

1400

80NZQ50-50-22

50

50

22

1400

50NZQ40-52-22

40

52

22

1400

150NZQ180-22-22

180

22

22

1400

150NZQ250-15-22

250

15

220

1400

150NZQ200-22-22

200

22

22

1400

150NZQ250-18-22

250

18

22

1400

100NZQ120-25-22

120

25

22

1400

100NZQ150-38-30

150

38

30

1400

150NZQ300-15-30

300

15

30

1400

150NZQ250-22-30

250

22

30

1400

150NZQ350-22-37

350

22

37

1400

150NZQ300-25-37

300

25

37

1400

150NZQ200-35-37

200

35

37

1400

100NZQ80-60-37

80

60

37

1400

100NZQ100-50-37

100

50

37

1400

100NZQ100-60-45

100

60

45

1400

100NZQ120-50-45

120

540

45

1400

100NZQ100-70-45

100

70

45

1400

150NZQ250-40-45

250

40

45

1400

100NZQ220-45-55

220

45

55

1400

100NZQ140-60-55

140

60

55

1400

200NZQ450-25-55

450

25

55

1400

100NZQ170-70-75

170

70

75

1400

200NZQ500-25-75

500

25

75

1400

100NZQ230-60-75

230

60

75

1400

200NZQ500-30-90

500

30

90

1400

200NZQ450-35-90

450

35

90

1400

100NZQ200-70-90

200

70

90

1400

100NZQ200-80-110

200

80

110

1400

100NZQ330-78-132

330

78

132

1400

100NZQ300-95-132

300

95

132

1400

Typical Applications:

It is suitable for extracting sand, silt, silt, tailings slurry, ore slurry, iron sand ore, rivers, lakes, reservoirs, ports, etc. The sand removal in the sedimentation tank of the enterprise, the sediment in the sewage treatment plant, etc.
