Brand: Nenglian
Model Number: SV/100R
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 7-14 days
Payment Terms: T/T 100%
Supply Ability: 1000 sets per month
Packaging Details: Wooden crate
Color: Blue Material: A05 Function: It is designed for delivering abrasive, large partcle and high density slurries.

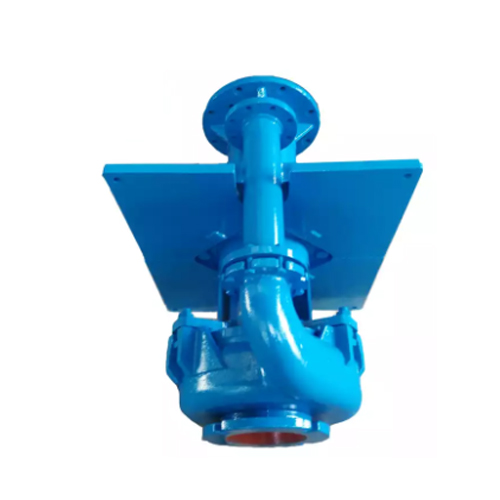

Pump Model: SV/100R
The SV heavy duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty catilever design makes the SV sump pump ideally suited for heavy continous handling of abrasive liquids and slurries whilst submerged in sumps or pits. The rugged SV heavy duty sump pumps are available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in:
Minerals Processing
Coal Preparation
Chemical Processing
Effluent Handling
Sand and Gravel
and almost every other tank, pit or hole-in-the-ground slurry handling situation.
Material Construction:
| Description | Standard Material | Optional Material |
| Impeller | A05 | A33, A49 |
| Casing | A05 | A33, A49 |
| Back Liner | A05 | A33, A49 |
| Shaft | Carbon Steel | SUS304, SUS316(L) |
| Discharge Pipe | 20# Mild Steel | SUS304, SUS316(L) |
| Column | 20# Mild Steel | SUS304, SUS316(L) |
Specifications:
| Pump Model | Allowable Max. Power (kw) | Material | Clear Water Performance | Impeller | |||||
| Capacity Q | Head H(m) | Speed n(r/min) | Max.Eff. η% | Length Shaft (mm) | No. of Vanes | Vane Dia. (mm) | |||
| Impeller | m3/h | ||||||||
| SV/40P | 15 | Metal (A05) | 19.44-43.2 | 4.5-28.5 | 1000-2200 | 40 | 900 | 5 | 195 |
| SV/65Q | 30 | 23.4-111 | 5-29.5 | 700-1500 | 50 | 1200 | 290 | ||
| SV/100R | 75 | 54-289 | 5-35 | 500-1200 | 56 | 1500 | 390 | ||
| SV/150S | 110 | 108-479.16 | 8.5-40 | 500-1000 | 52 | 1800 | 480 | ||
| SV/200S | 110 | 189-891 | 6.5-37 | 400-850 | 64 | 2100 | 550 | ||
| SV/250T | 200 | 180-1080 | 10-35 | 400-750 | 60 | 2400 | 605 | ||
| SV/300T | 200 | 180-1440 | 5-30 | 350-700 | 62.1 | 2400 | 610 | ||
