150ZGB Mineral Processing Tailings Slurry Pump

Brand: Nenglian
Model Number: 150ZGB
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 30 Sets per Month
Packaging Details: Plywood Crate

  • DESCRIPITON

● Material: Chrome Alloy A05
● Impeller: 5-Vane Closed
● Use: Coal Washery Plant Slurry Pump
● Stage: Single Stage
● Lubrication: Oil
● Speed: Fixed Rotation
● Model: 150ZGB



Introduction:

Nenglian offers pumping solutions for refuse, tailings and high volume concentrates in the mining industry. We also offer equipment sales, complete system designs and high quality engineering.

ZGB Series is a high performance, high capacity, high head ones and can be multi-set slurry pumps, widely used for carrying abrasive or corrosive slurry in industrial sectors such as electricity, metallurgy, mine, coal, building material and chemical engineering

Nenglian products include: centrifugal slurry pump and spares, horizontal slurry pump and spares, sumbersible slurry pumps, electric motors and control panels, vertical spindle slurry pumps and spares, dewatering pumps and spares.



Characteristics:

1. High efficiency and low abrasion
2. Can be connected to the multi-step series under the allowable pressure (3.6MPa)
3. The bearings are lubricated with thin oil can work under low temperature by placing the lubrication and cooling system intelligently



Specifications:

Model150ZGB
Capacity100-900m3/h
TDH60-94m
Max. Allowable Motor Power560Kw
Speed980r/min or 1480r/min
Max. Efficiency78%
LubricationOil

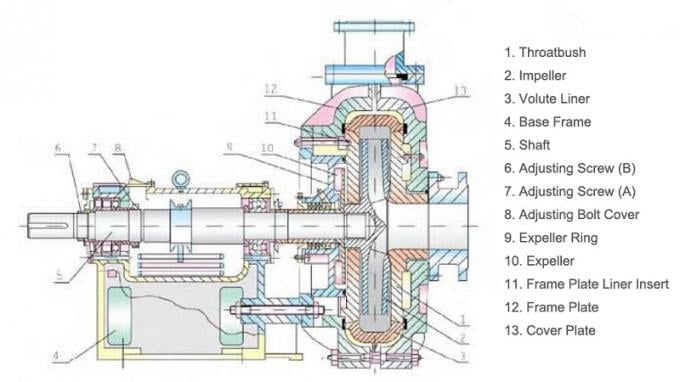

Construction of ZGB Slurry Pump:




Standard Material of Wet-end Parts: Hi-Chrome Alloy A05




Typical Applications:
Bottom/Fly Ash
Coal Washing
Power Plants
Potash Fertilizer Plant
Iron Ore Dressing Plant
Gold Mine Concentration Plant

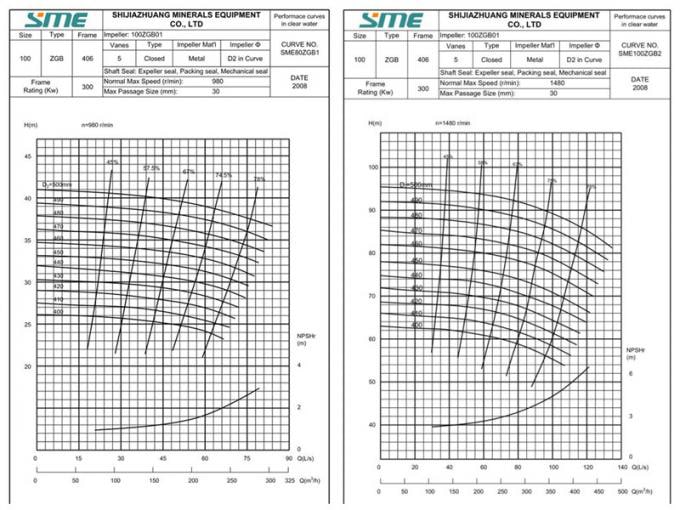

Performance Curve:

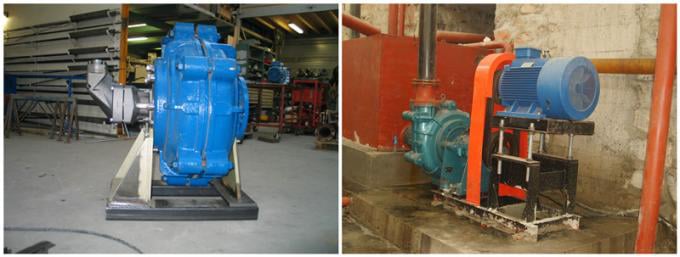

Projects of ZGB Heavy Duty Slurry Pump:




Tag:
solids handling pump, abrasive slurry pump
